You’ve deployed high-value electronics in a sealed NEMA enclosure, but now you’re battling thermal runaway. Fans are useless against solar gain and sealed-box heat buildup, and Peltier coolers are struggling as ambient temperatures rise. Stop guessing your BTU needs and start calculating; a vapor-compression micro DC air conditioner is likely the answer, but selecting the right one requires a methodical approach. This guide will walk you through a 5-step framework to properly size and select a cooling solution that ensures long-term reliability.

Key Takeaways

• Calculate, Don’t Guess: Accurately sizing your cooling unit starts with a precise heat load calculation (Internal Load + External Load).
• Peltier Isn’t Always the Answer: Thermoelectric coolers lose significant efficiency (COP) in high ambient temperatures, exactly when you need cooling most. Vapor-compression systems maintain stable performance.
• Factor in Solar Load: For outdoor enclosures, solar gain is a major heat source. Forgetting to account for it is a common cause of cooling system failure.
• Match Your Voltage: Integrating a micro DC air conditioner module requires matching its voltage (12V, 24V, or 48V) with your system’s power supply for optimal efficiency and stability.
• ΔT is Critical: The temperature difference (ΔT) between the outside ambient air and the desired internal temperature directly impacts the required cooling capacity.

The 5-Step Engineering Framework for Sizing Your Micro DC Air Conditioner

Sizing a cooling unit for a sealed enclosure isn’t black magic; it’s an engineering calculation. Follow these steps to get a reliable result and prevent costly overheating.

Step 1: Calculate Internal Heat Load (Q_in)

First, determine the total heat dissipated by the electronics inside the enclosure. This is your internal heat load. For most electronic components, the power consumed is nearly all converted to heat.

Formula: Q_in = P1 + P2 + ... + Pn (where P is the power consumption of each component in Watts)

Convert Watts to BTU/hr: BTU/hr = Watts * 3.412

Step 2: Calculate External Heat Transfer (Q_out)

Next, calculate the heat transferring into the enclosure from the outside environment. This depends on the enclosure’s surface area, material, and the temperature difference (ΔT).

Formula: Q_out = A * U * ΔT

• A: Surface area of the enclosure in square feet (excluding the bottom if it’s on a thermally insulated surface).
• U: Heat transfer coefficient of the enclosure material (e.g., painted steel ~ 1.0 BTU/hr·ft²·°F).
• ΔT: The difference between the maximum outside ambient temperature and the desired maximum internal temperature (°F).

Step 3: Account for Solar Load (Q_solar)

For enclosures exposed to direct sunlight, you must add the solar heat load. This is a critical and often overlooked step.

Formula: Q_solar = A_sun * I_solar * α

• A_sun: The surface area exposed to the sun in square feet.
• I_solar: Solar radiation value for your location (typically ~300 BTU/hr·ft² for peak sun in North America).
• α: Solar absorptivity of the enclosure’s surface (e.g., light-colored paint ~ 0.5, black paint ~ 0.95).

Step 4: Calculate Total Heat Load (Q_total)

Now, sum all the heat loads to find the total cooling capacity required.

Formula: Q_total (BTU/hr) = (Q_in + Q_out + Q_solar) * Safety_Factor

A safety factor of 1.2 to 1.5 (20-50%) is recommended to account for unforeseen variables and component degradation.

Step 5: Select the Right Voltage and Model

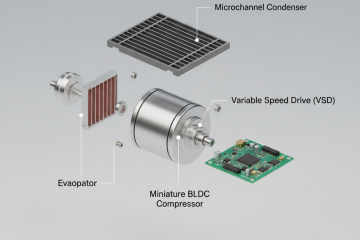

With your total BTU/hr requirement, you can select a unit. Ensure the voltage matches your power system (e.g., 12V, 24V, or 48V for telecom/off-grid applications). A miniature DC compressor is the core of these systems, offering high COP and reliability across a wide temperature range.

Worked Example: Telecom Enclosure

• Enclosure Size: 2ft x 2ft x 1ft (12 ft² surface area)
• Internal Electronics: 200W
• Max Outside Temp: 110°F (43°C)
• Desired Internal Temp: 95°F (35°C) -> ΔT = 15°F
• Location: Full sun

1. Q_in: 200W * 3.412 = 682 BTU/hr
2. Q_out: 12 ft² * 1.0 * 15°F = 180 BTU/hr
3. Q_solar (Top + 1 Side): (4 ft² + 2 ft²) * 300 * 0.6 (light gray) = 1,080 BTU/hr
4. Q_total (with 1.2 SF): (682 + 180 + 1080) * 1.2 = 2,330 BTU/hr

Conclusion: A unit with at least 2,330 BTU/hr cooling capacity is required. A 24V or 48V system would be ideal for this telecom application.

Frequently Asked Questions (FAQ)

1. What is the difference between a Peltier cooler and a micro DC air conditioner?

A Peltier (thermoelectric) cooler uses the Peltier effect to move heat. It’s simple but becomes very inefficient (COP < 0.5) at higher ambient temperatures and ΔT. A micro DC air conditioner uses a vapor-compression cycle with a miniature compressor, maintaining a much higher COP (2.0-4.0) and providing significantly more cooling power, especially in harsh conditions.

2. At what ambient temperature does a Peltier cooler become ineffective?

Peltier coolers struggle significantly when the ambient temperature exceeds 95°F (35°C), especially if you need to maintain a large ΔT. For environments reaching 110°F (43°C) or more, they are often not a viable solution for anything beyond a few watts of heat.

3. Can I use a 12V DC air conditioner for an outdoor telecom enclosure?

While you can, 24V and 48V systems are more common in telecom because they allow for lower current draw and smaller wire gauges for the same power delivery, which is more efficient over longer cable runs. 12V systems are excellent for mobile or portable applications with smaller cooling needs.

4. How do you manage condensate in a sealed electronics enclosure?

Modern micro DC air conditioners manage this in a closed loop. The evaporator is inside the enclosure, and the condenser is outside. Condensate formed on the evaporator is typically channeled to a “hot” part of the external condenser coil, where it evaporates away, requiring no draining.

5. What is the lifespan of a micro DC compressor compared to a Peltier module?

A brushless DC compressor has a very long lifespan, often rated for over 50,’000 hours, because it has few moving parts and is hermetically sealed. Peltier modules can degrade over time, especially when subjected to frequent thermal cycling, and their performance can drop noticeably after 10,000-20,000 hours.

6. How much space does a micro DC air conditioner module require?

These units are designed for compact applications. A typical unit for 1,000-2,000 BTU/hr of cooling might have a footprint as small as 8×12 inches, making them ideal for integrating into tight spaces where other cooling solutions won’t fit.

Conclusion: Your Next Steps

Overheating is a preventable failure. By moving from guesswork to a structured calculation, you can select a cooling solution that delivers consistent performance and protects your critical electronics. Here are your immediate action steps:

1. Audit Your Components: Compile a list of all devices in your enclosure and their maximum power consumption in Watts.
2. Measure Your Enclosure: Calculate the external surface area (A) and determine your maximum allowable internal temperature and worst-case external ambient temperature to find your ΔT.
3. Execute the Calculation: Use the formulas above to get a reliable estimate of your total required BTUs. Don’t forget the safety factor.
4. Validate Your Voltage: Confirm the DC voltage available in your system (12V, 24V, or 48V).
5. Engage with Experts: For complex projects or unique constraints, consult with thermal management specialists to validate your selection or explore a custom design and OEM solution.
